Grease Separators

Large amounts of oils and fats are generated every day in catering units (canteens restaurants, hospitals, etc.) which, if not conveniently intercepted, can cause serious environmental problems and clogging in the pipes.

The grease separation chambers intercept oils and fats from kitchen kitchens, avoiding problems of clogging in the boxes and wastewater collectors, as well as treatment, maintenance and operation problems in the biological treatment.

They comply with the emission limit value for oils and greases of D.L. 236/98 of August 1st.

Application

They are especially suitable for use in catering units, such as canteens, bars, cafes, restaurants or hospitals.

Advantages
  • Effective separation of oils and fats.
  • Easy access to clean solids.
  • Very simple installation.
  • Prevents clogging of pipes and manifolds.
  • It does not produce odors.
  • No energy costs
  • Significant benefits for the environment.
  • More efficient operation of municipal biological treatment

Models of grease separation chambers

Stainless steel

The liquid effluent goes to a second chamber where the oils and fats are separated from the water due to the difference in densities. Oils and fats, because they are less dense than water, accumulate on the surface of the latter where they are retained, avoiding their discharge to the waste water collectors, and then removed.The effluent from the kitchen sink flows through the tubing to the fat separation chamber where, in the first stage, the solids are retained in a basket (in the model with a basket).

ModelsCG1CG2CG3
Flow rate (l/s)0,51,01,5
Operating volume (l)4082120
Length (mm)610710770
Height (mm)340420410
Depth (mm)420520620
Input Height260323333
DN (mm)405050

In polyethylene for surface


ModelsFlow rate

 (Lt/seg)

Volume

(Lt)

Diam (mm)Length

(mm)

Height

(mm)

Cover

(mm)

Pipe

 (mm)

SG100

SG200

SG300

SG500

SG1000

SG2000

SG3000

SG5000

SG10000

SG15000

0,5

0,75

0,75

1

2

4

6

10

20

30

100

200

300

500

1000

2000

3000

5000

10000

15000

 420

560

58

730

940

1510

1510

1860

2320

2320

 580

1050

1320

1250

1550

1725

2375

2470

3300

4580

420

710

650

750

950

1630

1630

1890

2400

2400

Rectangular

Rectangular

Ø270

Ø220

Ø400

Ø400

Ø400

Ø400

Ø600

Ø600

DN50

DN110

DN90

DN90

DN110

DN110

DN160

DN200

DN200

DN200

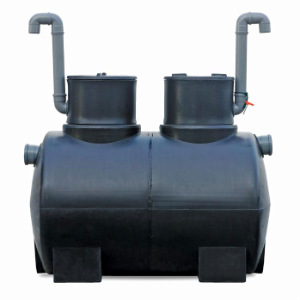

In polyethylene for burial with decanter

Flow rateVolumeWidthLengthHeightCoverPipe
(l/seg)(l)(mm)(mm)(mm)(mm)(mm)
21000940160013052x 400DN110
41900940230013052x 400DN110
728001350225016002x 400DN160
1250001520292018202x 400DN200
2080001840332021402x 400DN200
Optional

  • Sound and light alarm
