Automatic sand and anthracite filters for the removal of suspended particles

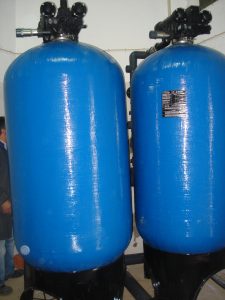

Automatic silex and anthracite filters consisting of a column made of polyester reinforced with fiberglass, filter media, filter media of different granulometries and anthracite, and automatic chronometric valve that controls the steps of operation and regeneration.

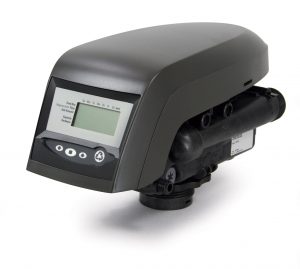

Autotrol Performa 263  and Magnum

• Automatic valve  PERFORMA 263 or Magnum
• Chronometric programmer LOGIX 742F
• Work pressure: 3 to 6 bar
• Work temperature: 4 to 35ºC

Vessel size Valve model Connections Silex (Kg) Anthracite (Kg) Filtration area (m2) Height (mm) Diameter (mm) Flow rate (m3/h/m2) Washing flow rate  (m3/h) 10 15 20 10 x 54 263CV-742F 1” 60 20 0,05 1570 265 0,5 0,8 1 1,5 13 x 54 263CV- 742F 1” 95 35 0,08 1570 345 0,8 1,5 1,6 2,4 14 x 65 263CV- 742F 1” 120 45 0,10 1895 365 1 1,5 2 3,0 16 x 65 263CV- 742F 1” 140 60 0,13 1895 420 1,3 1,7 2,6 4 18 x 65 263CV- 742F 1” 170 70 0,16 1945 490 1,7 2,6 3,4 4,8 21 x 62 MAGNUM- 742F 1 1/2” 190 65 0,22 1945 550 2,5 3,8 5 6,6 24 x 72 MAGNUM -742F 2 “ 260 125 0,29 2100 630 2,9 4,4 5,8 8,7 30 x 72 MAGNUM -742F 2″ 500 150 0,45 2325 780 4,6 6,9 9,2 14

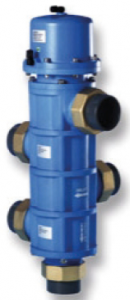

Automatic filters valve S363F

• S360 automatic valve in ABS
• Programmer STE of chronometric control, with programmable regeneration adjustment of 1 to 7 days.
• Connections 2 “F
• Working pressure: 2.5 to 6 bar
• Operating temperature: 0-35ºC
• Power supply 220 V-12 V, 50 Hz
• Cutting of water passage during regeneration.

Vessel size Valve model Connections Silex (Kg) Anthracite (Kg) Filtration area (m2) Height (mm) Diametro (mm) Flow rate (m3/h/m2) 10 15 20 30×72 S363 2” 500 150 0,45 2.400 780 4,5 6,8 9,0 36×72 S363 2” 650 200 0,65 2.410 931 6,5 9,8 13,0 42×72 S363 2” 1100 275 0,80 2.425 1.090 8,0 12,0 16,0 48×72 S363 2” 1400 375 1,16 2.425 1.235 11,6 17,4 23,2
